Portable Ground Penetrating Radar SL-GPR
Model:SL-GPR
Product Features
Technical Specifications (Customizable)
| Antenna Type | 50 MHz - 2.0 GHz Ground-Coupled Antenna |
| Sampling Frequency | 50k～285kHz adjustable |
| Detection Range | 0-50m (depending on antenna frequency and medium) |
| Sample Points | 32–32768 points/scan, optional |
| Gain Mode | Random, Linear, Exponential |
| Trigger | Spot measurement, distance measurement, time-continuous measurement, stepwise positioning measurement, automatic cruise |
| Display mode | Pseudocolor, stacked waveform, grayscale, or 3D plots |
| Power | Built-in lithium battery 12V |
| Operating Temperature | -30℃ ~ +70℃ |
Application Scenarios
Engineering Geological Survey: Detection of subsurface geological hazards such as piping in river embankments and dam foundations, karst formations, sinkholes, underground voids, ant nests, fault zones, ice layer thickness, and coal mine goaf areas.
Building Quality Inspection: Detect wall cracks, voids, and rebar distribution; evaluate foundation treatment effectiveness.
Underground Utility and Obstacle Detection: Mapping underground utility networks, detecting civil air defense structures, and identifying obstacles during piling operations.
Archaeology Applications: Use ground-penetrating radar to detect ancient tombs, city walls, roads, and other archaeological sites.
Forensic Investigation: Rapidly locate buried evidence such as human remains, firearms, knives, and drugs.
Road and Bridge Inspection: Survey of Adverse Geological Bodies, Quality Control During Highway Construction, Thickness Testing, Crack Detection, and Subgrade Disease Assessment

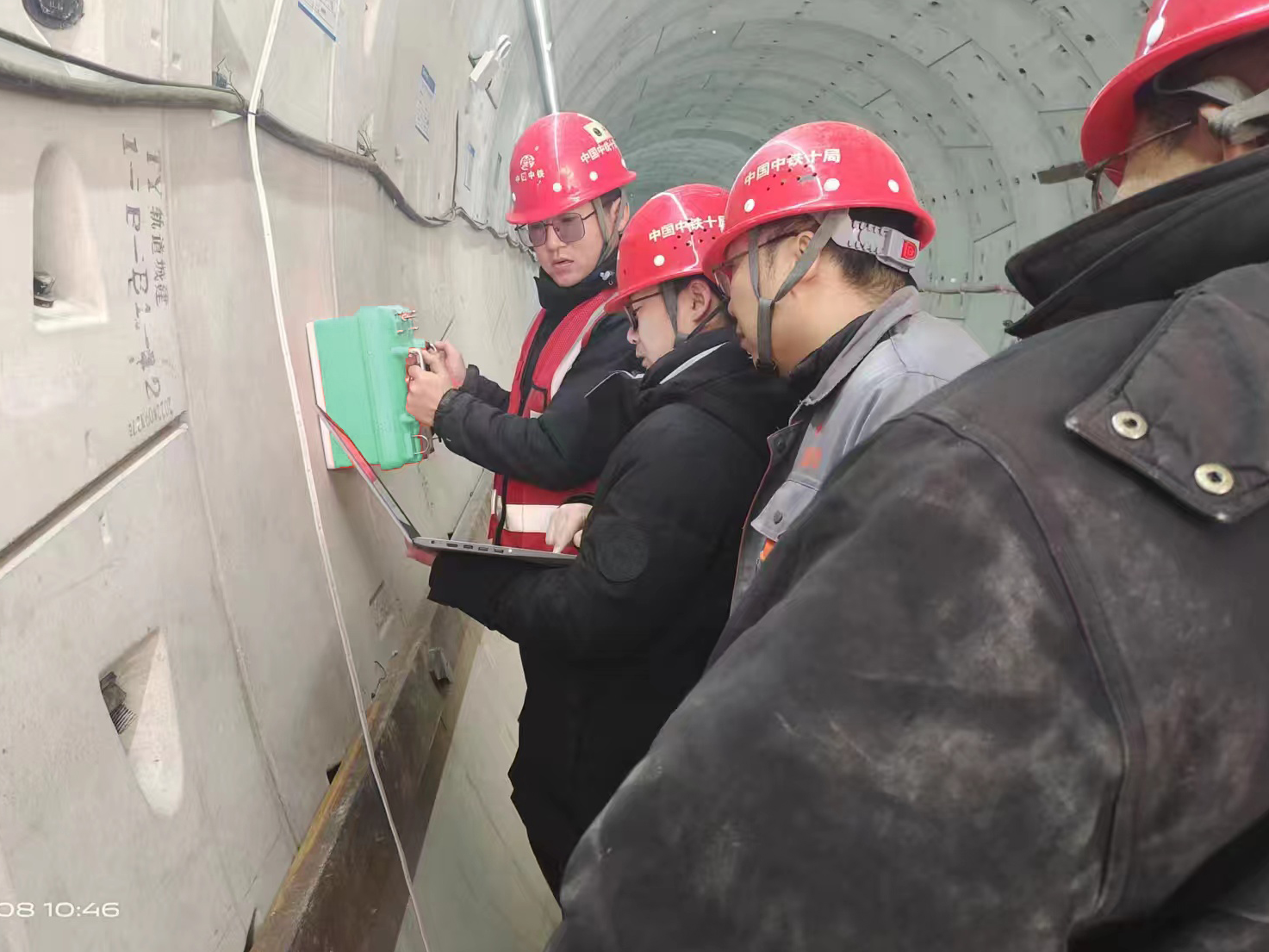

Tunnel Inspection: Forewarning Ahead of Tunnel Excavation, Quality Testing for Tunnel Engineering (Initial Support and Lining Thickness, Secondary Lining Thickness, Rebar Distribution, Grouting Density, and Defect Detection)
Typical Use Cases

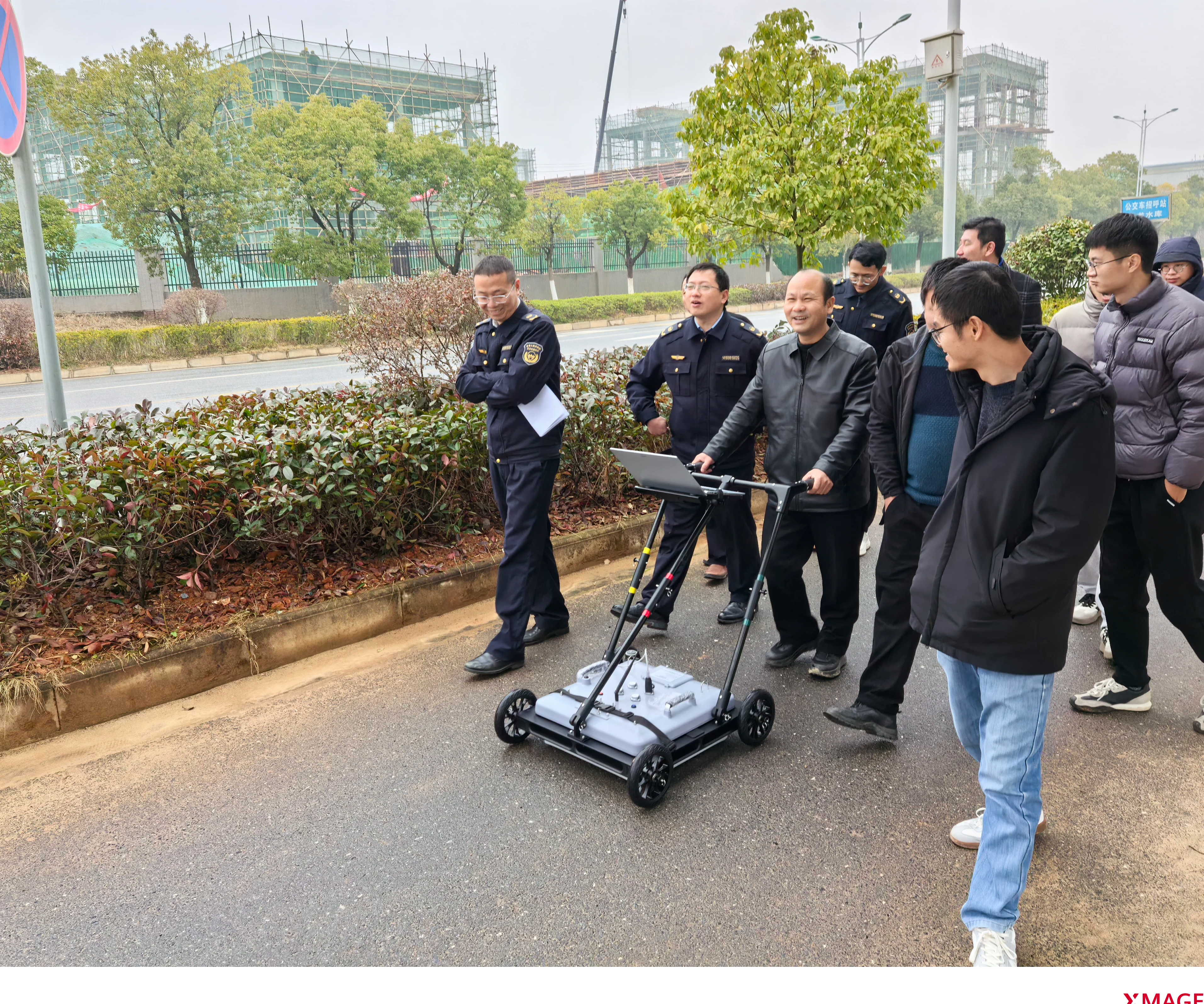

Highway Subgrade Inspection
Rapidly detect subgrade density and thickness, and identify defects such as voids and looseness.

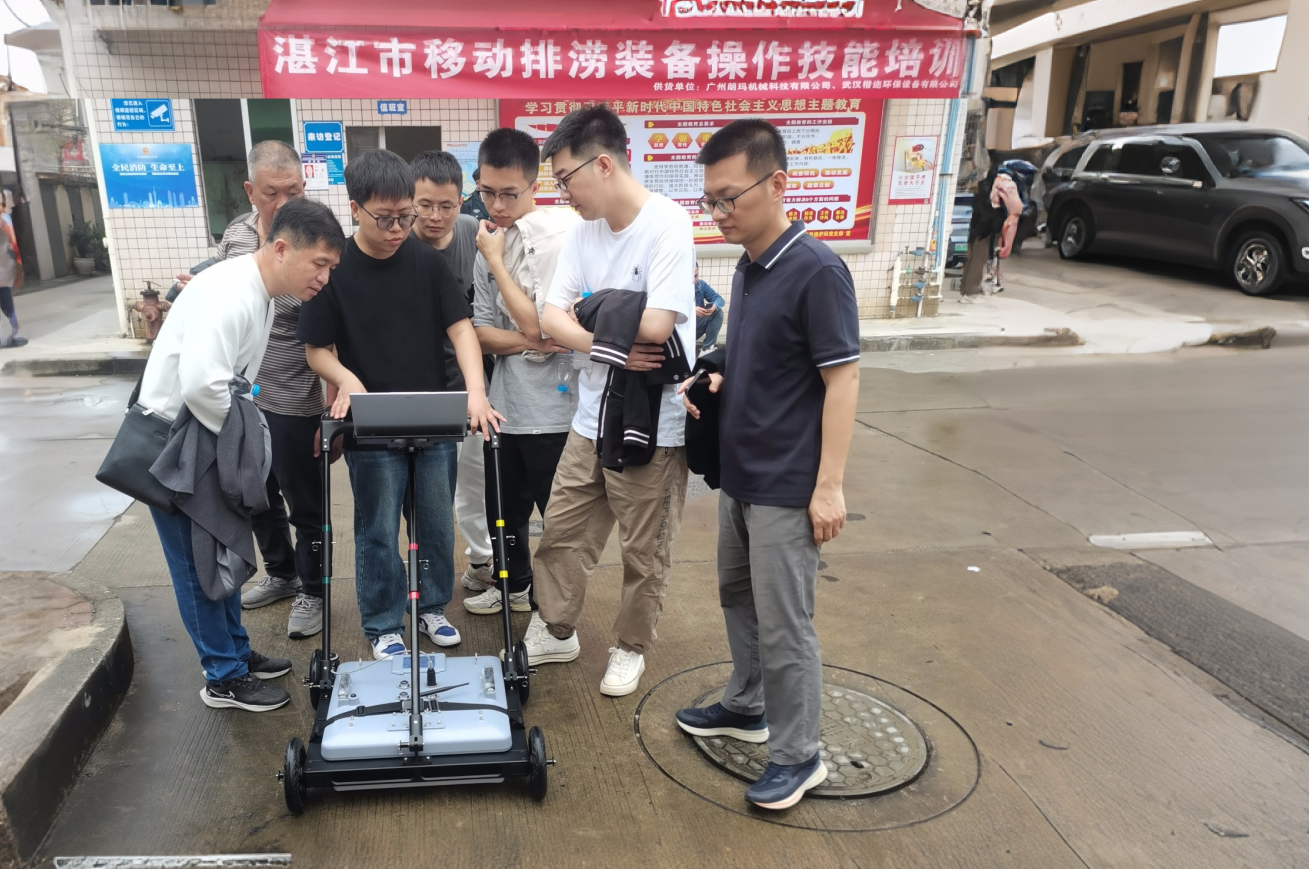

Urban Utility Detection
Precisely locate underground utility positions and burial depths to prevent construction damage

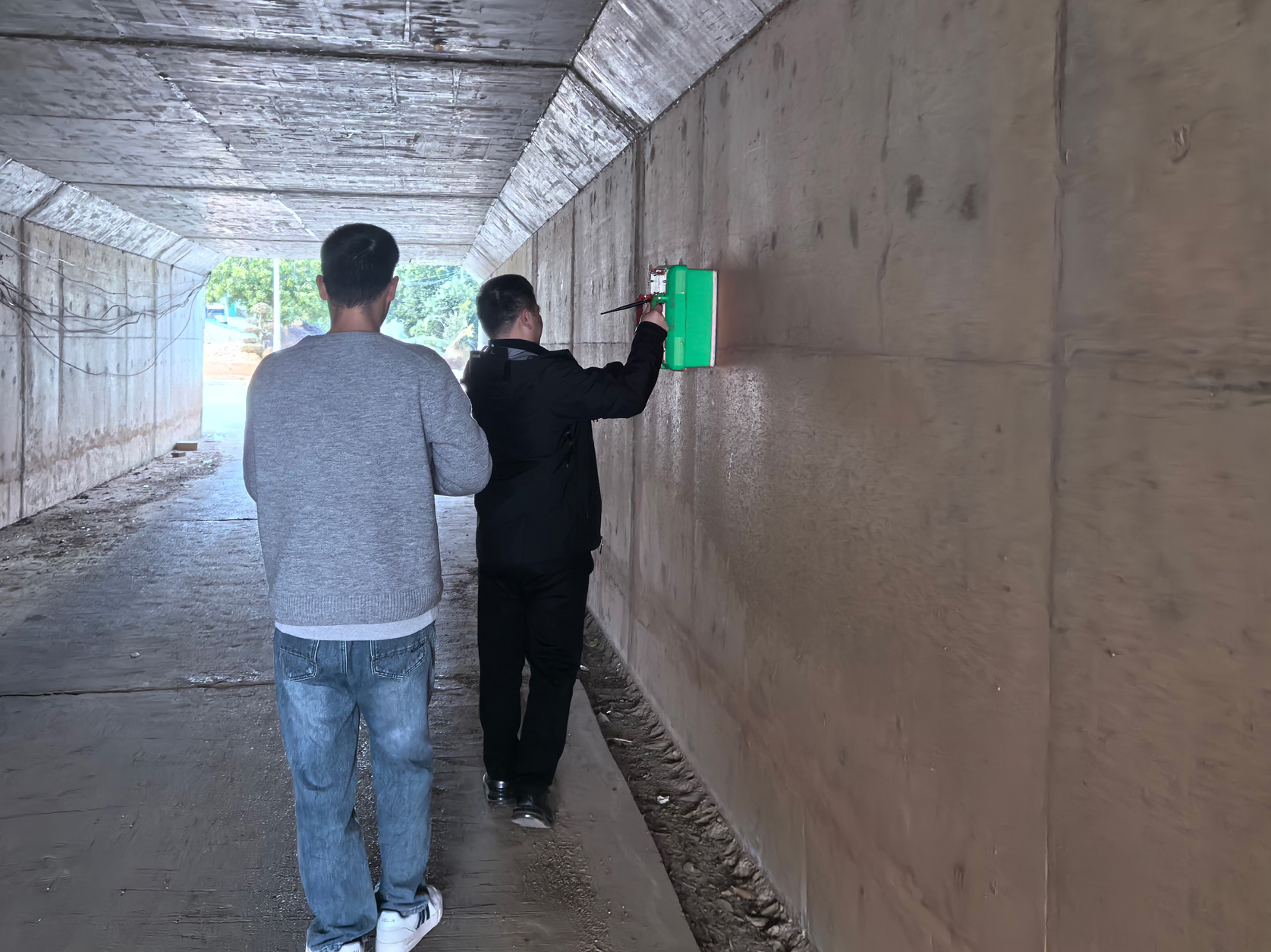

Structural Building Inspection
Detect internal defects in concrete, such as rebar distribution, voids, and cracks.
