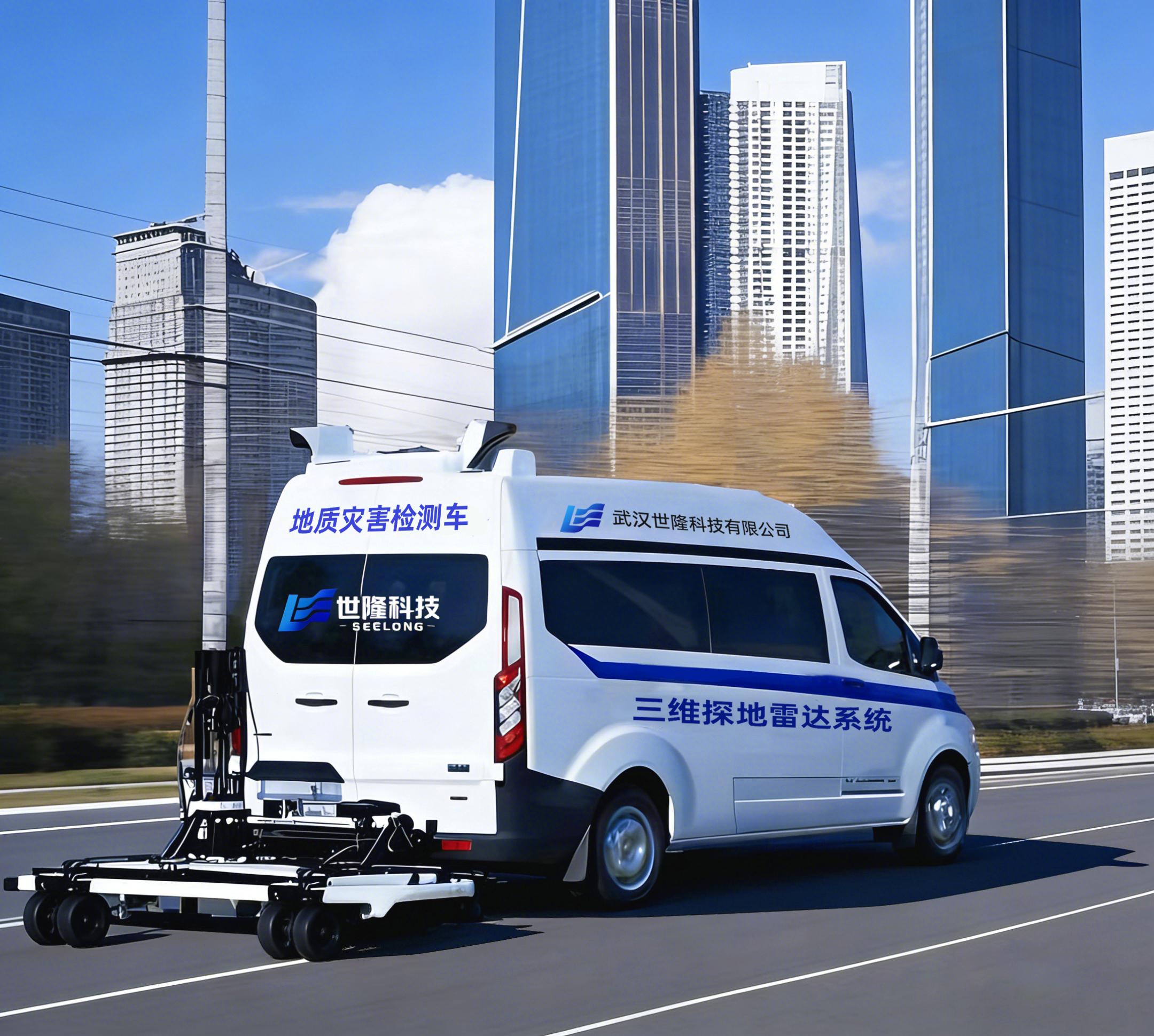

Vehicle-Mounted Ground Penetrating Radar SL-VGPR
Model:SL-VGPR
Product Features
Technical Specifications (Customizable)
| Antenna Type | 50MHz-2.0GMHz phased array antenna |
| Channel Count | 1-32 channels available; maximum 64 channels |
| Detection Range | 0-5m (depending on the medium) |
| Resolution | ≤1 cm |
| Detection speed | 0-120 km/h adjustable |
| Positioning Accuracy | RTK centimeter-level positioning |
| Collection Method | Vehicle / Cart / Manual Pull |
| Data Communication | Ethernet |
| Measurement Method | Distance-triggered measurement, continuous time measurement |

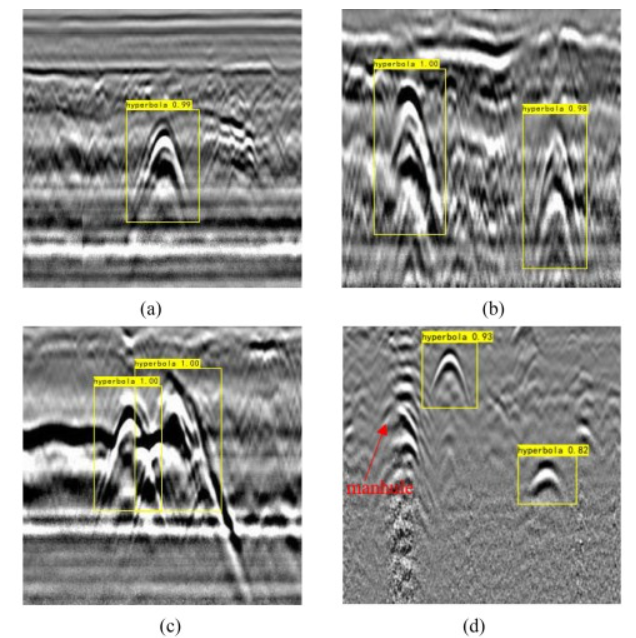

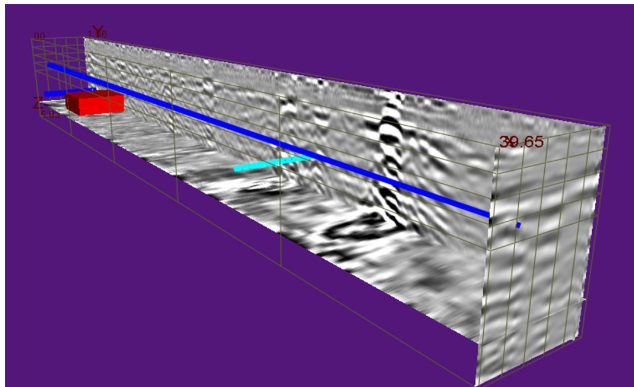

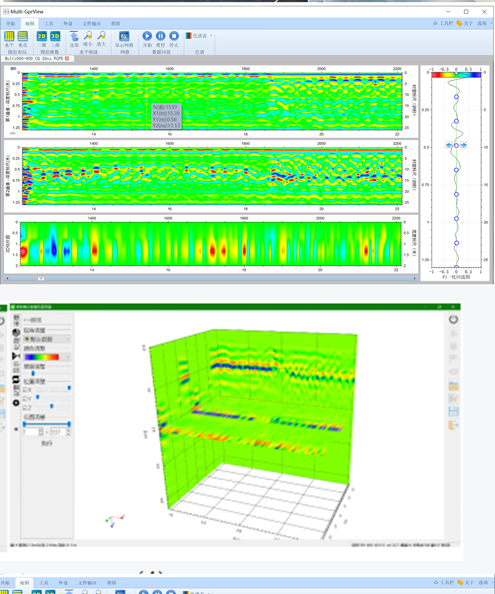

| Display mode | Pseudocolor, stacked waveform, or grayscale images; 2D cross-section display on-site or 3D depth slice visualization; 3D rendering |
Application Scenarios
Road Defect Detection: Municipal roads, highway structural layer thickness, void inspection, road structural strength assessment, defect identification; pavement crack scanning; dynamic subsidence warning for roads.
Municipal Pipeline Survey: Underground pipeline distribution, including burial depth, alignment, and precise location.
Railway and Tunnel Inspection: Detection of unknown objects under tracks, ballast thickness, smoothness, compaction, and settlement; railway subgrade layering and slope thickness measurement, density testing; locating mined-out areas, man-made cavities, karst caves, and drainage pipes.
Bridge Inspection: Crack detection, concrete density assessment, construction monitoring, and periodic inspections during bridge construction.
Airport Road Inspection: Daily structural safety checks of operational runways; quality control for construction-phase runways; emergency monitoring for special events.
Dam Safety Hazard Detection: Rapidly and accurately identify internal voids, ant hills, piping channels, and other hazard zones within embankments; monitor deformation, seepage, and cracking in real time.
Typical Use Cases
Highway Inspection
Perform subgrade and pavement inspections at highway speeds without disrupting traffic.
Railway Inspection
Track-mounted inspection for rapid assessment of trackbed condition
Airport Pavement Inspection
Rapid large-area scanning to detect concealed pavement defects
